Kingswinford Junction 1949

Figure 1 Location sketch

Kingswinford Junction was the point at which the GWR line to Wombourne and Wolverhampton left the GWR main line from Stourbridge Junction to Dudley and Wolverhampton – see the figure 1 for a sketch map showing the location and figure 2 for a detailed Ordnance Survey map from the 1930s. . It was situated between Brierley Hill and Brettell Lane stations (A and B on figure 2). There was also a very extensive set of sidings (C) at the junction that served as a major freight marshalling yard- see the figure above. Traffic through the yard was controlled from two signal boxes – Kingswinford North (D) and Kingswinford South (E). The latter can be seen in the photo in figure 3 from the 1980s (taken from here).

Figure 2 1930s OS map of Kingswinford Junction

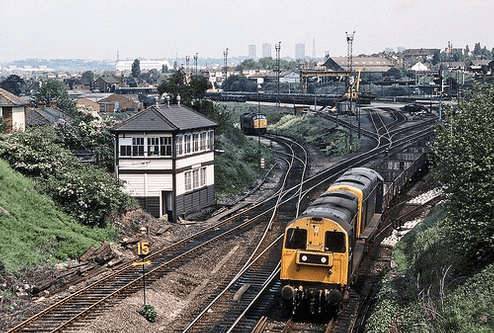

Figure 3 Kingswinford Junction and South Box in the 1980s

This brief post describes the services that ran through the junction in 1949, just after nationalization of the railways. It is based on a working timetable for that year that can be found on the Michael Clemens Railways website. As such it gives a snapshot of a busy railway location at a crucial point in the history of the railways.

The main passenger service through Kingswinford Junction was the Wolverhampton – Dudley – Stourbridge Junction stopping service with around 14 trains in each direction, the number varying slightly by day of week and direction. The trains departed from Wolverhampton Low Level calling at Priestfield, Bilston, Daisy Bank and Bradley, Prince’s End, Tipton, Dudley, Blowers Green, Round Oak and Brierley Hill, and passed through Kingswinford Junction before calling at Brettell Lane and Stourbridge Junction. The journey time was around 45 minutes. The timetabling was irregular i.e. not at fixed times past each hour, which seems odd to modern eyes, but such timetabling was common practice at the time.  Some trains were extended to Kidderminster or Worcester in the south and Shrewsbury, Crewe or Chester in the north. In addition there was one through Wolverhampton to London Paddington train each day, leaving Wolverhampton at 6.50am, calling at the local stations mentioned above and passing through the junction at 7.29am. It then called at local stations to Worcester, then at Evesham, Moreton in the Marsh and Oxford before arriving at Paddington at 11.30am. The return journey left Paddington at 1.45pm, passing through the Junction at 6.18pm and arriving at Wolverhampton at 6.57pm. There was also a single daily service from Stourbridge to Birmingham via the local stations to Dudley and Great Bridge, in the morning and the return trip in the evening. Most Birmingham passengers would have changed at Stourbridge Junction or at Dudley and Dudley Port.

There was very extensive freight traffic through Kingswinford Junction and sidings. This traffic was of different types. Some trains simply passed through, mainly using the Kingswinford branch between the Junction and Oxley sidings in Wolverhampton. These included several daily workings from Worcester to Crewe and from Rowley Regis to Ellsmere Port and from Hollinswood in Shrosphire to Stourbridge Junction and Worcester.  There were also occasional through freight workings along the Dudley to Stourbridge Junction line through the Junction, generally with local freight services, which in the main served the steelworks at Round Oak.

The main function of the sidings however was as a marshalling yard, receiving trains from yards around the country and reforming the wagons into trains for onward journeys to other yards. It had daily services to and from Birkenhead, Crewe, Didcot, Morris Cowley, Scours Lane, Swindon and Tavistock Junction, and it can thus be seen that it was integrated into a national web of interlocking freight services. The marshalling activities would have been extensive and would have taken place throughout the day and night.  It can be seen from the map of the sidings that there were exits to the north and the south, and thus trains that continued their journey along the main line to Dudley or Stourbridge would have had a straightforward route out of the yard. There were 15mph speed restrictions at both exits. However, some trains that began their journey in the sidings used the Kingswinford branch – specifically those to Birkenhead and Crewe. The operation of these trains would have been complex as there was no exit / entry to the sidings from the north to the Kingswinford branch, so the train would have to have been shunted too or from the long siding by the main line towards Brettell Lane and then reverse in the other direction. The large height difference between the branch and the sidings, visible in figure 2 would have been a complicating factor.

The Working Timetable also contains details of “Bank Engine” duties. These were the timetables for specific locomotives that assisted trains where required (such as for the movements out of the yard described above); delivered freight brought to the yard by other trains in the immediate vicinity (eg. to Round Oak, or Cradley); or shunted trucks at various local sidings etc. An example is given in Figure 4 below for such a locomotive with duties primarily on the Kingswinford branch, including shunting and collecting trucks from Bromley (private sidings); Pensnett (the collieries in the Shut End area) and Baggeridge Junction (from the Pensnett Railway branch to the colliery). Train speeds on the branch were low – 10 to 15mph in general with only short stretches where 25mph was allowed.

Figure 4 Bank Engine Schedule

The branch briefly had a passenger service from 1925 to 1932, which served a number of halts along the line. Two of these – Bromley Halt next to the Stourbridge Extension Canal and Pensnett Halt are shown in figure 5 – the former from the 1930s and the latter from the 1950s. There were signal boxes at both Bromley and Pensnett that were still manned for part of the day in 1949.

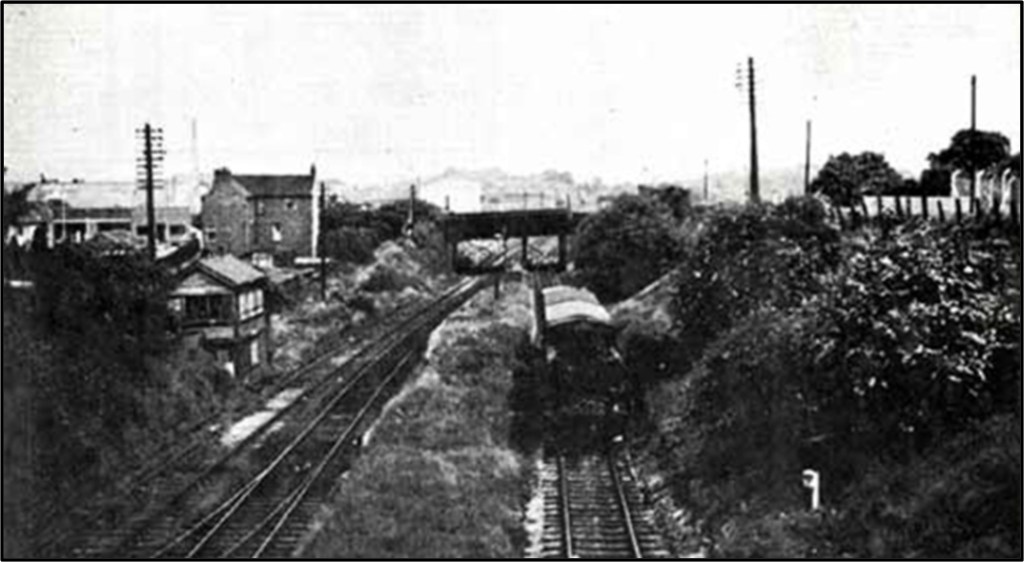

Figure 5 Bromley Halt and Pensnett Halt

Finally, the question arises as to what type of freight traffic passed by and through the yard. Here the Working Timetable is not terribly helpful, as most trains are simply referred to by the generic term “freight”. But occasionally the entries are more explicit – such as a Worcester-Crewe train for “perishables”;  Ellesmere Port to Rowley Regis with fuel oil and the return Rowley to Ellesmere service was for empty oil tanks. There were also specific sidings in the yards for specific customers – David H Pegg, Harris and Pearson firebrick works in Brettell Lane and Marsh and Baxter’s. The latter was used for the transport of pigs to the bacon factory just to the east of the sidings – indeed there was a “pig” tunnel from the sidings, under the approach road and to the factory along which the animals were driven.
